Multi-use fire pump adapter SQD100-2.5A

SQD100-2.5A

Retail price

$ 0

Market price

$ 0

Weight

Quantity

Stock

隐藏域元素占位

Classification:

Multi-use fire pump adapter

Key words:

Multi-use fire pump adapter

Product Description

Commodity name: Multi-use fire pump adapter SQD100-2.5A
Commodity ID: SQD100-2.5A

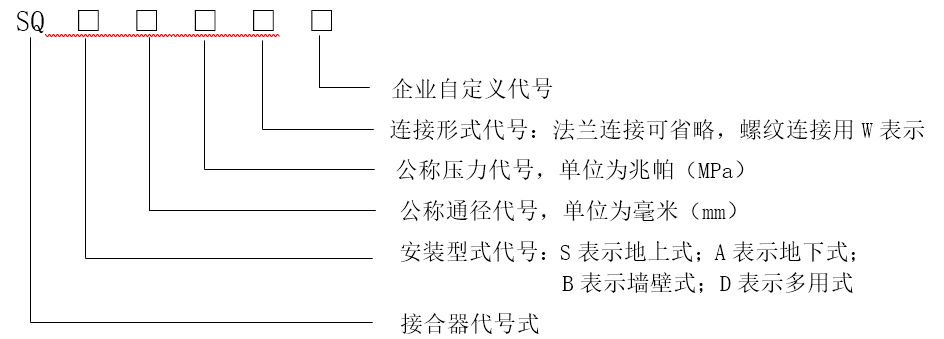

1. model preparation:

Example: SQS100-1.6 indicates a ground fire pump adapter with nominal diameter of 100mm, nominal pressure of 1.6MPa and flange connection.

2. executive standard: GB3446-2013 "fire pump adapter"

3. parameters:

Product Name	Model specifications	Nominal diameter mm	Nominal pressure MPa	Water inlet interface specification	Diameter of outlet mm	Applicable media
Above ground Fire pump adapter	SQS100-1.6	100	1.6	KWS 65 × 2	100	Water, foam mixture
	SQS150-1.6	150		KWS 80 × 2	150
	SQS100-1.6A	100		KWS 65 × 2	100
	SQS150-1.6A	150		KWS 80 × 2	150
underground type Fire pump adapter	SQA100-1.6	100		KWA 65 × 2	100
	SQA150-1.6	150		KWA 80 × 2	150
	SQA100-1.6A	100		KWA 65 × 2	100
	SQA150-1.6A	150		KWA 80 × 2	150
wall type Fire pump adapter	SQB100-1.6A	100		KWS 65 × 2	100
wall type Fire pump adapter	SQB150-1.6A	150		KWS 80 × 2	150
Multi-use Fire pump adapter	SQD100-1.6	100		KWS 65 × 2	100
	SQD150-1.6	150		KWS 80 × 2	150
	SQD100-1.6A	100		KWS 65 × 2	100
	SQD150-1.6A	150		KWS 80 × 2	150
Above ground Fire pump adapter	SQS100-2.5	100	2.5	KWS 65 × 2	100
Above ground Fire pump adapter	SQS150-2.5	150		KWS 80 × 2	150
underground type Fire pump adapter	SQA100-2.5	100		KWA 65 × 2	100
underground type Fire pump adapter	SQA150-2.5	150		KWA 80 × 2	150
Multi-use Fire pump adapter	SQD100-2.5	100		KWS 65 × 2	100
	SQD150-2.5	150		KWS 80 × 2	150
	SQD100-2.5A	100		KWA 65 × 2	100
	SQD150-2.5A	150		KWA 80 × 2	150

4. applicable places: pump adapter is according to the "building design fire protection code" for high-rise building supporting fire facilities. It is usually connected to the water supply system of fire fighting equipment such as automatic sprinkler system or fire hydrant in the building.
